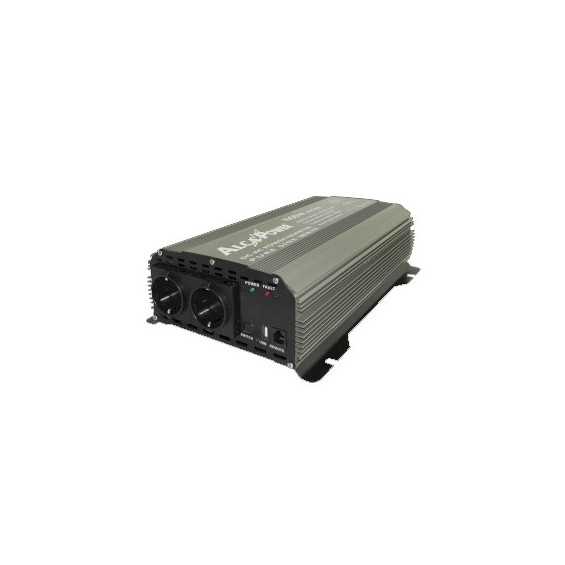

300W/24V Inverter onda pura Alca Power

In saldo!
-50%

300W/24V Inverter onda pura Alca Power

Riferimento: IRP300-24 PSW

300W (600W peak) - 24V - Inverter pure wave - Dim. 20.5 x 20.2 x 7 cm. Weight: 1.56 kg.

Nota

Ultimi articoli in magazzino

83,85 € 167,69 € -50%

Ultimi pezzi disponibili

Selez. IVA

Prima di aggiungere il prodotto al carrello, seleziona l’aliquota IVA qui sotto. Per maggiori informazioni sulle agevolazioni clicca qui

Questo prodotto è già nel tuo carrello con IVA diversa

Paga a rate con sequra_logo

Pagamenti sicuri al 100%.

Paga a rate

Descrizione
Caratt. Tecniche

This pure sine wave inverter for isolated systems allows to supply with 24V batteries into alternating current equipment at 220V until the nominal power of the inverter itself, and can be matched both to photovoltaic plants that wind.

Possibility of remote ON / OFF inverter control via wired remote control (optional), available separately here: cable remote control.

General characteristics

Input: screw terminals.
Output: two earthed sockets.
USB output jack of DC 5V, 500mA.
for remote control socket.
Input protections: low-voltage, overvoltage, reverse polarity and temporary short circuit. `
Protections output overloading, overheating and temporary short circuit.

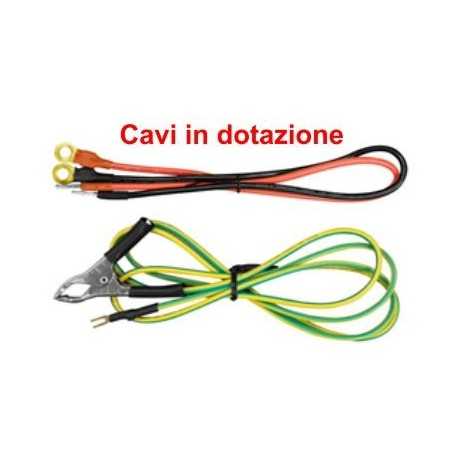

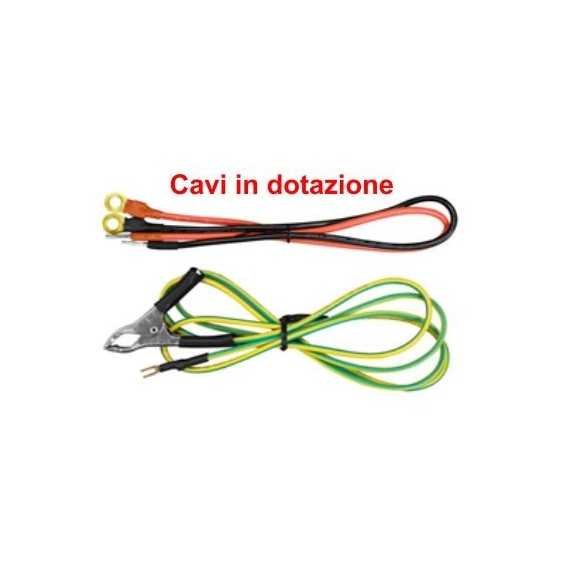

Supplied accessories: cables with eyelets to connect the battery cable to the ground connection.
Optional accessories: remote control.

Technical features

Template	IRP24-300
energy continues	300W
maximum inrush power	600W
Efficiency	82%
Nominal tension	24V
Input Voltage Range	22~30 VDC
Tensione Output	AC2205%
Frequency	50Hz2%
Onda Output	Pure sine wave
Power Vacuum	<0,85A
battery voltage alarm download	21V ±0.6V DC
Voltage automatic shutdown	19V ±0.8V DC
THD	5%
Working temperature	-10C ~ 40C
shutdown alarm Temperature	60C 5C
Maximum humidity tolerated	<80%
Weight	1,56 Kg
dimensions	205x202x70 mm
Output 220V	n.2 Presa Shuco europea + 1 USB 5V 500mA

Connecting the battery cables	Included in pack
automatic cooling fan	AND
Terminal Ground	AND
Lights POWER and FAULT	AND (2xLED)

Altezza Pannello (cm): 7 cm
Larghezza Pannello (cm): 20,2 cm
Spessore Pannello (cm): 20,2 cm
Peso Pannello (kg): 1,56 kg
Tensione sistema: 24V
Regolatore di carica: Escluso
